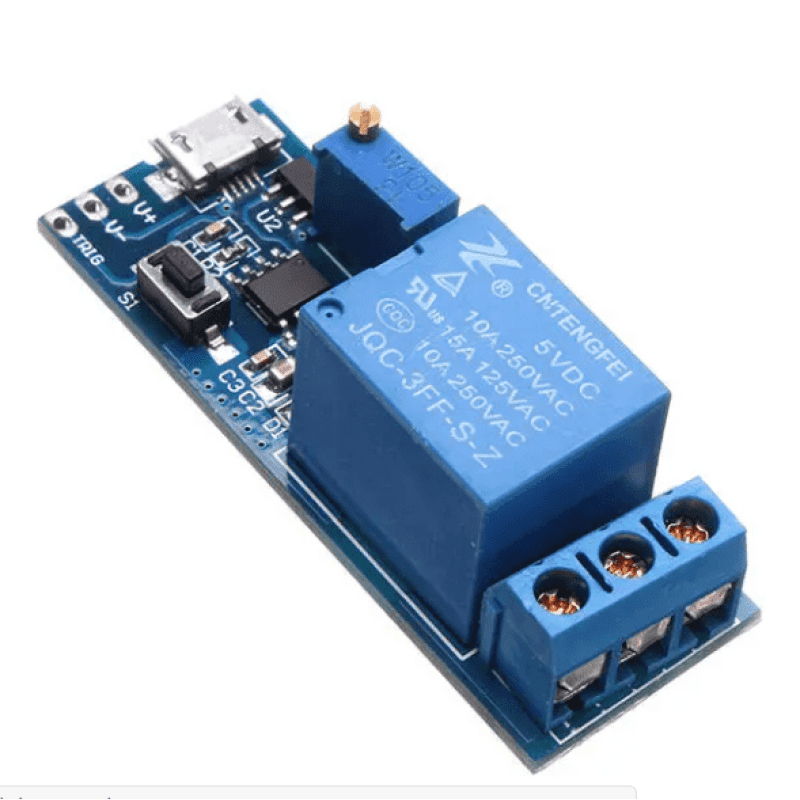

5V-30V Trigger Delay Timer Relay Conduction Relay Module Time Delay Switch

$ 90.44

Complete the form below to receive an instant quote;

1.

Instant quote emailed to you!

2.

Free artwork designs created in just 2 hours!

3.

Free UK delivery in approx. 3-5 working days!

Add your size and design

Mat 1

QTY:

Or enter a custom size (between width of 200cm x length 550cm)
Your mat can be positioned in landscape or portrait orientation.

QTY:
Upload artwork No File Uploaded
Uploading Artwork

Please upload a good quality image in .jpg, .jpeg, .gif, .png, .svg. Images should be no larger than 1500 x 1500 pixels.

You can only add one artwork file per mat so please add another size to upload another design.

Add another size or design

Delivery – Approx. 3-5 working days from approval of designs

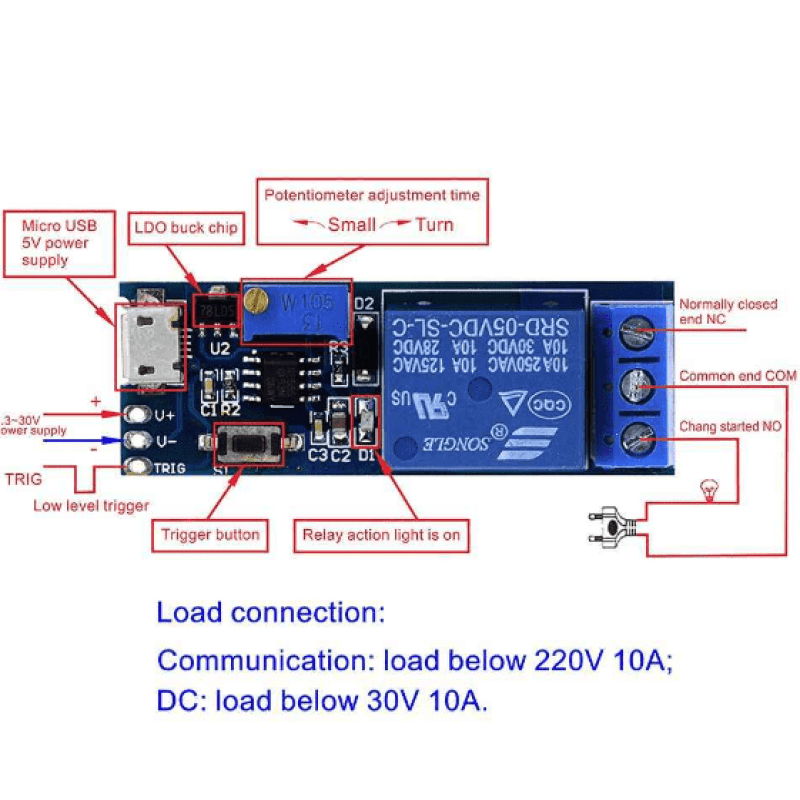

Wide voltage 5V-30V Time can be adjusted via a potentiometer, meeting your most occasions Micro USB 5.0V power supply with input, easy to use 5–30V wide supply voltage External triggering and onboard buttons Two triggering methods With a relay pull-in indicator Interference ability, under various interference will not malfunction relay for industrial control. Module features: 1. Working voltage: Wide voltage any voltage between 5-30V, Micro USB power connector and two solder terminals 2. Operating mode: feed the module power, output of the module state: normally open (NO) and the common terminal (COM) disconnected, normally closed (NC) and the common terminal (COM) is turned on. Originating outside the contact (TRIG) to a low pulse signal, or touch trigger button and instantly, the relay and, working lights, this time, the status of the relay output: normally open (NO) and the common terminal (COM) is turned on, Normally Closed (NC) and the common terminal (COM) is disconnected after 0-24 seconds (this time can be adjusted according to your needs) relay opens after the bell, then relay back to the state before the trigger. 3. The time can be adjusted via a potentiometer, default 0-24 seconds. If you need more time, more replaceable capacitor (C2) or potentiometer. Delay time formula: T = 1.1RC. For example: 1M resistor capacitor 22uf then T = 1.1 * 0.000022 * 1000000 = 24.2 seconds. 4. With a relay indicator. 5. The module can be controlled: 10A 250VAC (AC), 10A 30VDC (direct current) following loads. 6. Has freewheeling protection relay. 7. signal terminal block is designed with a pull and a filter circuit, anti-jamming capability, suitable for industrial control. Many manufacturers have added optocoupler isolation, but with the trigger signal to the module and not isolation, would not achieve the interference effect. After the test was found to trigger or enhance the stability of end to interference, regardless of this module is the electromagnetic interference environment, or instantly through power module, the relay will not malfunction. 8. Size: 5.4 * 1.9 * 1.8cm (L * W * H)
